Scott 2012
Schede modelli Scott catalogo anno 2012

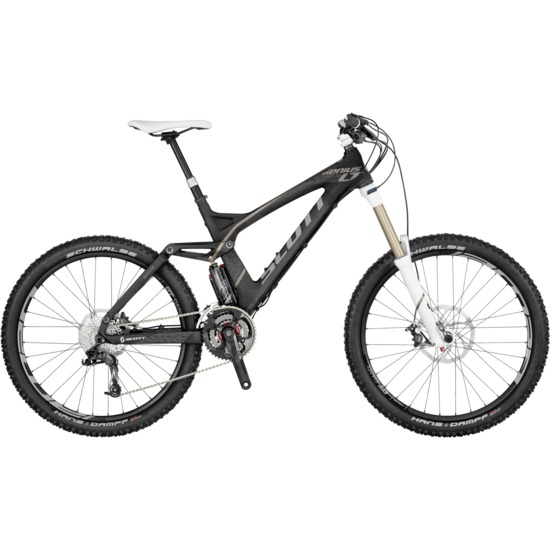

Altri modelli ScottGenius LT 20 (Scott)
Produttore: Scott Serie: All Mountain Tipo: Full suspended
Catalogo: 2012
Le fibre HMX del telaio della Genius LT 20 e la componentistica SRAM X0 rendono questa bici con 185 mm di escursione pedalabile in salita ma anche adatta alla discesa.
Telaio: Genius LT carbonio, fibre HMX-Net
Forcella: Rock Shox Lyrik RLR, Lockout-140-180mm
Ammortizzatore: Scott Equalizer 3, Lockout-110-185mm
Gruppo SRAM X9 / X7
Freni: Avid Elixir 7 a disco
Componentistica: Rock Shox Reverb seatpost
Ruote: DT Swiss AM 20
Product name
Bike Genius LT 20
Sizes
S, M, L
Frame
Genius LT Carbon Concept, Carbon mainframe IMP 5, HMF NET, tapered HT, Alloy 6061 D.B. swingarm, IDS SL 12x142mm, BB height adjustable, ISCG05 Adapter, 185mm rear travel
Fork
Rock Shox Lyrik RLR, Scott Custom, Air, Remote Lockout, Tapered steerer, IS Rebound adjustable, 20mm Maxle, 2 position Air Travel adjustable 180- 140mm
Headset
Syncros AM Pro Tapered 1.5“ - 1 1/8“, semi integrated 50 / 61mm
Rear Derailleur
Sram X9 long cage, 30 Speed
Front Derailleur
Sram X7 DM S3, dual pull
Shifters
Sram X7 Trigger, adjustable clamp, with Matchmacker Clamp
Brake Levers
Avid Elixir 7
Brakes
Avid Elixir 7, 200/F and 180/R mm HS1 Rotor
Crankset
Sram X9 3.3, GXP PF, 44Ax33Ax22A T
BB-Set
Sram GXP PF integrated, shell 41x89.5mm
Handlebar
Scott Pilot 20 Pro 7075 Alloy, 20mm rise, 700mm, OS 31.8mm, Scott lockon grips
Stem
Scott AM, 4 bolt, 6° angle
Pedals
None included
Seatpost
Rock Shox Reverb Stealth, hydraulic remote system, 31.6mm
Seat
Scott AM, 7mm CROM rails
Front Hub
DT Swiss AM 20 Disc IT 20mm
Rear Hub
DT Swiss AM 20 Disc IT with 12mm RWS 12 x 142mm
Chain
Sram PC 1031
Cassette
Sram PG 1050, 11-36 T
Spokes
DT Swiss Champion Black
Rims
DT Swiss AM 20, 32H, Tubeless ready
Tires
Schwalbe Hans Dampf EVO, 26 x 2.35, 67 EPI, Kevlar, Snake Skin, Tubeless ready, Compound Front: Trail Star / Rear: Pace Star
Rear Shock
Scott Equalizer 3, 3 Modus / Lockout-Traction-Full travel, sag indicator, dual rebound adjustable
Remote System
Scott Twinloc remote lever, front & rear lockout activate by one lever, Travel adjust: Lockout - 110 - 185mm
Weight
13.90 kg / 30.62 lbs
